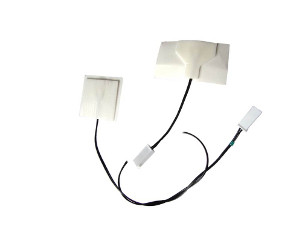

Self-Adhering Surface NTC Temperature Sensors For Industrial HVACR Applications

Name: SelfAdhering Surface NTC Temperature Sensors For Industrial HVACR Applications
Brand: UCHI
Price: 1 USD

Place of Origin : Dongguan，Guangdong,China

Brand Name : UCHI

Certification : ROHS,SGS

Model Number : CWF103F-3950F

MOQ : 1000PCS

Price : Negotiable

Packaging Details : Bulk 500PCS/BAG

Delivery Time : 7 working days

Payment Terms : T/T,Paypal,Western Union,Money gram

Supply Ability : 8000,000,000PCS Per Month

Contact Now

Self-Adhering Surface NTC Temperature Sensors For Industrial HVACR Applications

Quick Detail:

Excellent heat transfer

Long-term stability

Multiple adhesive tape sizes and shapes available

Various lengths

Temperature ranges from -30 to +70 °C.

PVC single insulated lead wire, 3x1.5mm cross-sectional profile.

Voltage withstand: 750 Vac between the terminals of the connector and the contact tape, for a broadly sinusoidal wave form at 50 Hz, where the max permissible current is 1 mA.

Description:

UCHI has a breadth of high volume core temperature sensing products for Industrial HVACR applications. UCHI's range of Thermometrics Self-Adhering Surface Temperature Sensors are typically designed for placement on the external wall of a water tank or boiler reservoirs. They are also suitable for reservoir tanks working in conjunction with solar panel water heating systems. This range of adhesive pad sensors detect over-temperature resulting from a malfunction or a dry-fire and have been used in industrial applications for decades with a proven robust quality record in the field.

Pressure sensitive adhesive tapes loaded with ceramic powders provide high thermal conductivity and thus excellent heat transfer
from the heat source to a NTC thermistor while maintaining appropriate levels of dielectric strength. An adhesive lined foam backing tape provides air and moisture resistance with optional WRC (5470) water safety and DIN 4102 part 1 (B3) fire safety approvals.

Applications:

Self-Adhering Surface NTC Temperature Sensors For Industrial HVACR Applications

The sensors are designed to work in predominantly dry environments and are particularly suited for domestic applications where they can be positioned between the water tank and an insulating jacket as shown. The sensors should NOT be used externally where they can be subjected to wind, rain and direct sun.Residual oil on the surface of a metallic tank, resulting from a drawing process, can cause a loss of adhesion. Oil residuals should be cleaned away before the application of the sensor.

Specifications:

Self-Adhering Surface NTC Temperature Sensors For Industrial HVACR Applications

Part Number	Foam backing size / mm	Full length / mm	Connector type
JS4228	45x45, square	700	Molex 5559
JS5698	45x45, square	750	Molex 5559
JS6670	45x45, square	280	Molex 5559
JS6862	45x45, square	650	Molex 5559
JS6744	45x45, square	320	Molex 5559
JS6812	45x45, square	420	Molex 5559
JS5539	30 wide x 70 long, rectangular	125	Molex 5559
JS7289	45 wide x15 long & 15 wide x 15 long, tapered	320	Molex 5559
JS7290	45 wide x15 long & 15 wide x 15 long, tapered	420	Molex 5559
JS7352	45 wide x15 long & 15 wide x 15 long, tapered	160	Molex 5559

Competitive Advantage:

Factory supply directly
Completed certificates such as UL,VDE,SGS,etc and high quality available
Quick delivery
Best after-sales services
OEM & ODM available
